Optimizing Bracha's Reliable Broadcast: Shaving Rounds off a 37-Year-Old Algorithm

Bracha’s reliable broadcast has been the go-to Byzantine broadcast primitive since 1987. Three rounds, $O(n^2)$ messages, optimal fault tolerance at $n > 3f$. Textbook stuff.

I’ve been trying to get a fast multi-value agreement primitive: something where all nodes propose values and agree on one (or ⊥ if they’re hopelessly split). Reliable broadcast is the natural building block, but three rounds felt like overkill for the happy path.

So I went digging. Months of searching the literature turned up plenty of options, but they all came with catches: weaker fault models, synchrony assumptions, trusted setups. Nothing that felt like a clean win. Eventually I circled back to Bracha and noticed something hiding in plain sight: by using a larger quorum for the optimistic path, we can deliver in two rounds when conditions are good. No new assumptions. Same fault tolerance. Just better intersection properties.

This post covers the optimized broadcast and the MVA extension I built on top of it.

0x0: Quick Refresher on Bracha

Byzantine reliable broadcast solves a deceptively simple problem: a designated leader wants to broadcast a value $v$ to $n$ parties, where up to $f < n/3$ can be malicious (Byzantine). The protocol must guarantee that all honest parties either agree on the same value or don’t deliver anything at all, but no split-brain scenarios allowed.

Asynchronous model is the hardest setting for distributed protocols. Messages can be delayed arbitrarily by the adversary, there are no timeouts or clocks you can rely on, and you can’t tell a slow node from a dead one. The upside: protocols proven correct in this model stay safe no matter what happens with timing. The downside: you can’t guarantee termination if enough nodes are faulty (see FLP impossibility).

Quorum intersection is the key trick. If you require $n - f$ nodes to agree on something, any two such sets overlap. With $n > 3f$, the overlap is at least $f + 1$ nodes, so at least one is honest. This honest node “witnesses” both sets and can prevent conflicting decisions.

Correctness of a solution boils down to three properties:

Agreement: Honest parties that deliver, deliver the same value
Validity: If the leader is honest and broadcasts $v$, all honest parties eventually deliver $v$
Totality: If one honest party delivers, all honest parties eventually deliver

Bracha’s protocol uses three message types across three rounds:

upon start as leader with input v:
    send ⟨INIT, v⟩ to all

upon ⟨INIT, v⟩ from leader ∧ sentₑ = ⊥:
    send ⟨ECHO, v⟩ to all; sentₑ ← v

upon E(v) ≥ n−f ∧ sentᵣ = ⊥:
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon R(v) ≥ f+1 ∧ sentᵣ = ⊥:              // Amplification
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon R(v) ≥ n−f ∧ delivered = ⊥:
    deliver(v)

Why the READY round? ECHOs alone can’t guarantee termination. A Byzantine leader can equivocate, sending different values to different parties, fragmenting honest echoes.

Standard quorum intersection gives us $n - 2f > f$ overlap between any two $(n-f)$-sized sets. That’s enough honest overlap to prevent two conflicting values from both reaching $n-f$ ECHOs—but it doesn’t help when neither value reaches threshold. A Byzantine leader can fragment honest echoes across multiple values, leaving everyone stuck. The READY round breaks the deadlock.

0x1: The Counterintuitive Shortcut

The clue came from a Tendermint forum post explaining why their protocol needs a pre-vote phase. The observation: with $n = 3f+1$ nodes, you need pre-vote. But with $n = 5f+1$ nodes, you can skip it entirely.

I stared at this for a while. How can adding nodes let you skip a round? Rounds exist to do something. You can’t just add redundancy and magically skip a communication step…

However, it starts to make sense once you realize the extra nodes aren’t just redundancy. They change the flavor of quorum intersection. Standard quorum intersection guarantees overlap, but that overlap might be almost entirely Byzantine. A larger quorum guarantees honest nodes in the overlap. And honest nodes don’t equivocate. What if we had a majority of honest nodes right in there?

We don’t need more nodes. We need a higher threshold on the same nodes, which gives us the same stronger intersection property.

Define three thresholds:

\[ \begin{aligned} Q &= n - f &&\text{(standard quorum)} \\ Q_o &= \lfloor n/2 \rfloor + f + 1 &&\text{(optimistic threshold)} \\ Q_a &= f + 1 &&\text{(amplification threshold)} \end{aligned} \]

The magic is in $Q_o$:

Lemma (Strong Intersection): Any two sets of size $$Q_o$$ overlap in at least $$f+1$$ honest parties.

Proof: Let $S_1, S_2$ be sets of size $Q_o$.

\[ |S_1 \cap S_2| \geq 2Q_o - n = 2(\lfloor n/2 \rfloor + f + 1) - n \geq 2f + 1 \]

Since at most $f$ are Byzantine, the overlap contains at least $f + 1$ honest parties. ∎

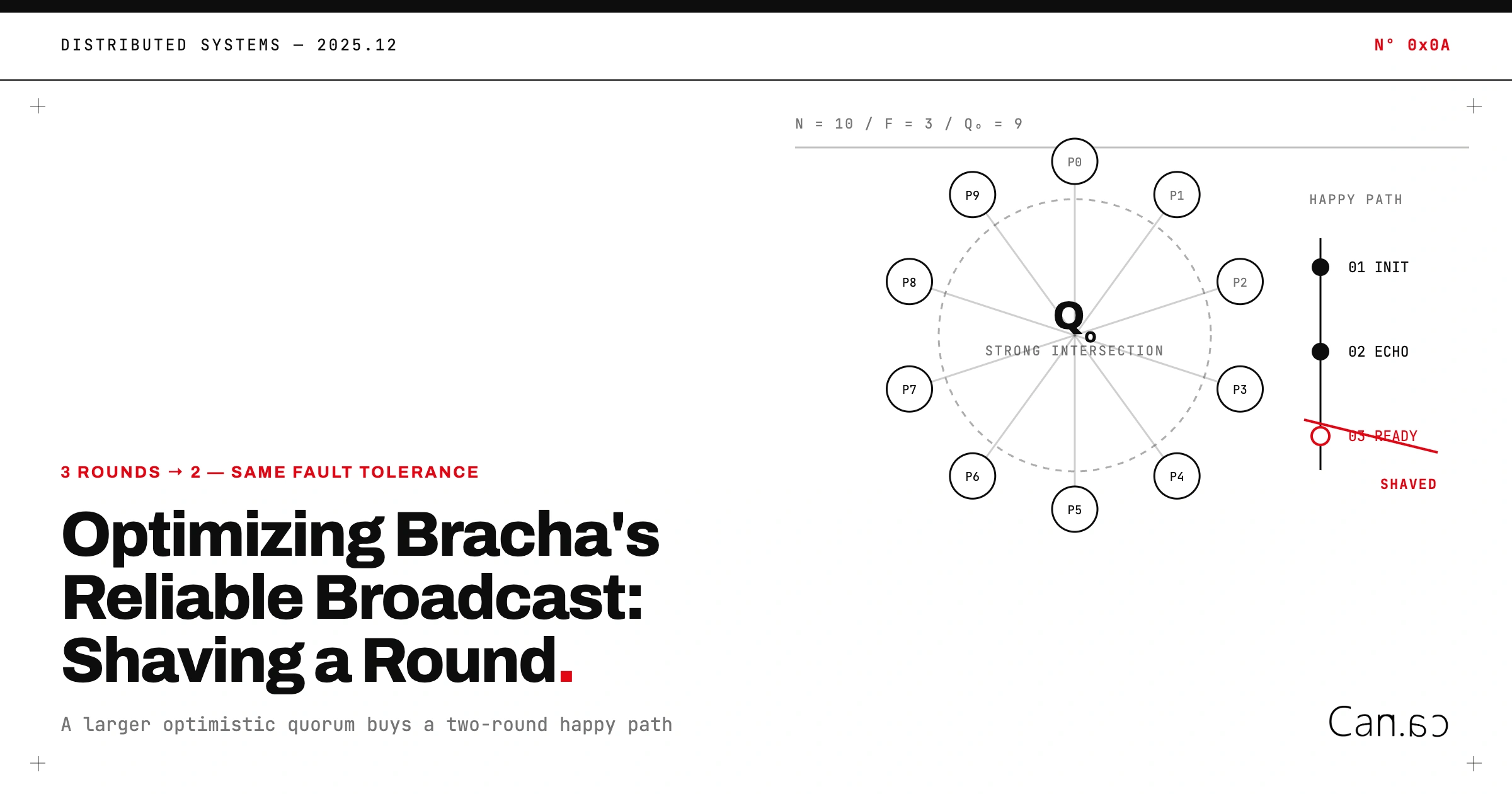

Let’s visualize why this matters. With $n = 10$ and $f = 3$:

Fundamentally different from standard quorum intersection. With $$Q_o$$ echoes for some value $$v$$ , we know that $\geq f+1$ honest parties echoed $$v$$ . And honest parties echo exactly once. So no conflicting value can ever reach $$Q_o$$ , or even $$Q$$ , since the remaining honest parties number at most $$(n - f) - (f + 1) = n - 2f - 1 < Q - f$$ .

We can deliver before the READY round completes. READYs still propagate to ensure totality.

0x2: Round-Optimized Bracha

The optimized protocol adds an “optimistic delivery” path:

upon ⟨INIT, v⟩ from leader ∧ sentₑ = ⊥:
    send ⟨ECHO, v⟩ to all; sentₑ ← v

upon E(v) ≥ Qₒ ∧ delivered = ⊥:              // Optimistic
    if sentᵣ = ⊥: send ⟨READY, v⟩ to all; sentᵣ ← v
    deliver(v); delivered ← v

upon E(v) ≥ Q ∧ sentᵣ = ⊥ ∧ delivered = ⊥:   // Q echoes -> ready
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon R(v) ≥ Qₐ ∧ sentᵣ = ⊥ ∧ delivered = ⊥:  // Amplification
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon R(v) ≥ Q ∧ delivered = ⊥:               // Standard delivery
    if sentᵣ = ⊥: send ⟨READY, v⟩ to all; sentᵣ ← v
    deliver(v); delivered ← v

Note on Totality: When a process delivers via the optimistic path, it also sends READY(v), ensuring the value propagates through amplification. Even if only one correct process initially sees $$Q_o$$ echoes (with Byzantine help), the resulting READY triggers amplification at other processes. Amplification requires only $$Q_a$$ readies (no echo-backing), allowing the value to propagate to $$Q$$ readies for standard delivery. READYs propagate progressively as they arrive at slower processes.

Happy case (honest leader, healthy network): All $n - f$ honest parties ECHO the same value. If the network is well-synchronized, all honest ECHOs arrive quickly, often reaching $$Q_o$$ before the READY phase begins.

Adversarial case (Byzantine leader or delayed messages): Some value reaches $Q$ ECHOs but not $Q_o$. Fall back to three rounds via READYs.

Safety Proof Sketch

Three cases:

Two optimistic deliveries can’t conflict: Both require $Q_o$ ECHOs. By strong intersection, $\geq f+1$ honest parties appear in both sets. But honest parties ECHO once. Contradiction.
Optimistic delivery blocks conflicting standard delivery: If $v$ gets $Q_o$ ECHOs, at least $Q_o - f \geq f + 1$ honest parties echoed $v$. The remaining honest parties ($\leq n - f - (f+1) = n - 2f - 1$) plus $f$ Byzantine can produce at most $n - f - 1 < Q$ votes for any other value.
Standard paths use Bracha’s original safety: Quorum intersection ensures agreement.

The TLA+ Spec

bracha_opt.tla (download)

  1-------------------- MODULE bracha_opt --------------------
  2(*
  3 Optimized Bracha Reliable Broadcast with Fast Path
  4 ===================================================
  5 Can Bölük, April 1, 2025.
  6
  7 Single-leader Byzantine reliable broadcast with optimistic 2-round
  8 delivery. Falls back to standard 3-round Bracha when conditions are
  9 adversarial.
 10
 11 Properties (n > 3f):
 12   - Agreement    All honest parties deliver the same value
 13   - Validity     If broadcaster is honest, all deliver its input
 14   - Totality     If one honest delivers, all honest eventually deliver
 15   - Termination  All honest parties eventually deliver
 16
 17 Synchrony: Safety holds under full asynchrony. Termination requires
 18 partial synchrony (bounded message delay after GST).
 19
 20 Fault Model: A faulty broadcaster can send different values to different
 21 recipients. Modeled via a partition function assigning each honest party
 22 to a value. Faulty non-broadcasters can send arbitrary ECHO/READY.
 23 *)
 24
 25EXTENDS Naturals, FiniteSets, TLC
 26
 27\* ============================================================================
 28\* Protocol Parameters
 29\* ============================================================================
 30CONSTANTS
 31   Honest,         \* the set of correct processes
 32   Faulty,         \* the set of Byzantine processes, may be empty
 33   V               \* the set of valid values
 34
 35\* Sentinel for not yet set
 36NULL ≜ "∅"
 37
 38\* Arbitrary value - symmetric so choice irrelevant
 39Command ≜ CHOOSE v ∈ V : TRUE
 40
 41\* ============================================================================
 42\* Definitions
 43\* ============================================================================
 44P ≜ Honest ∪ Faulty       \* the set of all processes
 45N ≜ Cardinality(P)             \* total number of processes
 46F ≜ Cardinality(Faulty)        \* number of Byzantine processes
 47
 48\* Thresholds
 49Q  ≜ N - F                     \* standard quorum (2f+1 when n=3f+1)
 50Qo ≜ N ÷ 2 + F + 1          \* optimistic quorum
 51Qa ≜ F + 1                     \* amplification (f+1)
 52
 53ASSUME ∧ N > 3 * F
 54       ∧ V ≠ {}
 55       ∧ Honest ∩ Faulty = {}
 56       ∧ IsFiniteSet(Honest)
 57       ∧ IsFiniteSet(Faulty)
 58       ∧ IsFiniteSet(V)
 59
 60\* Symmetry: combine permutations across Honest, Faulty, V
 61CombinePerm(ph, pf, pv) ≜
 62   [x ∈ P ∪ V ↦ IF x ∈ Honest THEN ph[x]
 63                ELSE IF x ∈ Faulty THEN pf[x]
 64                ELSE pv[x]]
 65
 66Sym ≜ {CombinePerm(ph, pf, pv) :
 67         ph ∈ Permutations(Honest),
 68         pf ∈ Permutations(Faulty),
 69         pv ∈ Permutations(V)}
 70
 71\* Broadcaster candidates (one of each type by symmetry)
 72OneHonest ≜ IF Honest ≠ {} THEN {CHOOSE h ∈ Honest : TRUE} ELSE {}
 73OneFaulty ≜ IF Faulty ≠ {} THEN {CHOOSE f ∈ Faulty : TRUE} ELSE {}
 74
 75\* ============================================================================
 76\* Protocol State Variables
 77\* ============================================================================
 78VARIABLES
 79   broadcaster, \* Distinguished leader process
 80
 81   \* === Honest party broadcast state ===
 82   sent_init,           \* [P -> V ∪ {NULL}]
 83   sent_echo,           \* [P -> V ∪ {NULL}]
 84   sent_ready,          \* [P -> V ∪ {NULL}]
 85
 86   \* === Faulty broadcaster equivocation ===
 87   faulty_equivoc,      \* [V -> SUBSET Honest]: partition for faulty broadcaster equivocation
 88
 89   \* === Per-recipient receive tracking (count-based) ===
 90   rcvd_init_v,         \* [Honest -> V ∪ {NULL}]: INIT value received
 91   rcvd_echo_cnt,       \* [Honest -> [V -> 0..N]]: count of ECHOs for v received
 92   rcvd_ready_cnt,      \* [Honest -> [V -> 0..N]]: count of READYs for v received
 93
 94   delivered            \* [Honest -> V ∪ {NULL}]: Delivered value
 95
 96send_vars ≜ ⟨sent_init, sent_echo, sent_ready⟩
 97recv_vars ≜ ⟨rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt⟩
 98vars ≜ ⟨broadcaster, sent_init, faulty_equivoc, sent_echo, sent_ready,
 99          rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
100
101\* ============================================================================
102\* Helper Operators
103\* ============================================================================
104HasInit(p) ≜ rcvd_init_v[p] ≠ NULL
105InitValue(p) ≜ rcvd_init_v[p]
106
107SentEchoCount(v) ≜ Cardinality({src ∈ P : sent_echo[src] = v})
108SentReadyCount(v) ≜ Cardinality({src ∈ P : sent_ready[src] = v})
109
110EchoQuorum(p, t) ≜ {v ∈ V : rcvd_echo_cnt[p][v] ≥ t}
111ReadyQuorum(p, t) ≜ {v ∈ V : rcvd_ready_cnt[p][v] ≥ t}
112
113\* ============================================================================
114\* Type Invariant
115\* ============================================================================
116TypeOK ≜
117   ∧ broadcaster ∈ P
118   ∧ sent_init ∈ [P → V ∪ {NULL}]
119   ∧ faulty_equivoc ∈ [V → SUBSET Honest]
120   ∧ sent_echo ∈ [P → V ∪ {NULL}]
121   ∧ sent_ready ∈ [P → V ∪ {NULL}]
122   ∧ rcvd_init_v ∈ [Honest → V ∪ {NULL}]
123   ∧ rcvd_echo_cnt ∈ [Honest → [V → 0‥N]]
124   ∧ rcvd_ready_cnt ∈ [Honest → [V → 0‥N]]
125   ∧ delivered ∈ [Honest → V ∪ {NULL}]
126
127\* ============================================================================
128\* Protocol Initialization
129\* ============================================================================
130Init ≜
131   ∧ broadcaster ∈ OneHonest ∪ OneFaulty
132   ∧ sent_init = [src ∈ P ↦ NULL]
133   ∧ faulty_equivoc = [v ∈ V ↦ {}]
134   ∧ sent_echo = [src ∈ P ↦ NULL]
135   ∧ sent_ready = [src ∈ P ↦ NULL]
136   ∧ rcvd_init_v = [p ∈ Honest ↦ NULL]
137   ∧ rcvd_echo_cnt = [p ∈ Honest ↦ [v ∈ V ↦ 0]]
138   ∧ rcvd_ready_cnt = [p ∈ Honest ↦ [v ∈ V ↦ 0]]
139   ∧ delivered = [p ∈ Honest ↦ NULL]
140
141\* ============================================================================
142\* Message Reception
143\* ============================================================================
144
145\* Receive INIT from honest broadcaster (uniform value)
146ReceiveInitFromHonest(p) ≜
147   ∧ delivered[p] = NULL
148   ∧ rcvd_init_v[p] = NULL
149   ∧ broadcaster ∈ Honest
150   ∧ sent_init[broadcaster] ≠ NULL
151   ∧ rcvd_init_v' = [rcvd_init_v EXCEPT ![p] = sent_init[broadcaster]]
152   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo, sent_ready,
153                  rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
154
155\* Receive INIT from faulty broadcaster (uses equivocation partition)
156ReceiveInitFromFaulty(p) ≜
157   ∧ delivered[p] = NULL
158   ∧ rcvd_init_v[p] = NULL
159   ∧ broadcaster ∈ Faulty
160   ∧ ∃ v ∈ V : p ∈ faulty_equivoc[v]
161   ∧ LET v ≜ CHOOSE v ∈ V : p ∈ faulty_equivoc[v]
162      IN rcvd_init_v' = [rcvd_init_v EXCEPT ![p] = v]
163   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo, sent_ready,
164                  rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
165
166\* Receive one more ECHO for value v (count-based)
167ReceiveEcho(p) ≜
168   ∧ delivered[p] = NULL
169   ∧ ∃ v ∈ V :
170         ∧ rcvd_echo_cnt[p][v] < SentEchoCount(v)
171         ∧ rcvd_echo_cnt' = [rcvd_echo_cnt EXCEPT ![p][v] = @ + 1]
172   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo, sent_ready,
173                  rcvd_init_v, rcvd_ready_cnt, delivered⟩
174
175\* Receive one more READY for value v (count-based)
176ReceiveReady(p) ≜
177   ∧ delivered[p] = NULL
178   ∧ ∃ v ∈ V :
179         ∧ rcvd_ready_cnt[p][v] < SentReadyCount(v)
180         ∧ rcvd_ready_cnt' = [rcvd_ready_cnt EXCEPT ![p][v] = @ + 1]
181   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo, sent_ready,
182                  rcvd_init_v, rcvd_echo_cnt, delivered⟩
183
184Receive(p) ≜
185   ∨ ReceiveInitFromHonest(p)
186   ∨ ReceiveInitFromFaulty(p)
187   ∨ ReceiveEcho(p)
188   ∨ ReceiveReady(p)
189
190\* ============================================================================
191\* Faulty Party Actions
192\* ============================================================================
193
194\* Faulty broadcaster assigns honest parties to value partitions (equivocation)
195FaultyEquivocate ≜
196   ∧ broadcaster ∈ Faulty
197   ∧ faulty_equivoc = [v ∈ V ↦ {}]
198   ∧ ∃ partition ∈ [Honest → V] :
199         faulty_equivoc' = [v ∈ V ↦ {h ∈ Honest : partition[h] = v}]
200   ∧ UNCHANGED ⟨broadcaster, sent_init, sent_echo, sent_ready,
201                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
202
203\* Faulty party sends ECHO for arbitrary value
204FaultySendEcho ≜
205   ∃ f ∈ Faulty, v ∈ V :
206      ∧ sent_echo[f] = NULL
207      ∧ sent_echo' = [sent_echo EXCEPT ![f] = v]
208      ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_ready,
209                     rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
210
211\* Faulty party sends READY for arbitrary value
212FaultySendReady ≜
213   ∃ f ∈ Faulty, v ∈ V :
214      ∧ sent_ready[f] = NULL
215      ∧ sent_ready' = [sent_ready EXCEPT ![f] = v]
216      ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo,
217                     rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
218
219FaultyStep ≜
220   ∨ FaultyEquivocate
221   ∨ FaultySendEcho
222   ∨ FaultySendReady
223
224\* ============================================================================
225\* Honest Party Actions
226\* ============================================================================
227
228\* Honest broadcaster sends INIT (same value to all)
229LeaderInit(self) ≜
230   ∧ self = broadcaster
231   ∧ self ∈ Honest
232   ∧ sent_init[self] = NULL
233   ∧ delivered[self] = NULL
234   ∧ sent_init' = [sent_init EXCEPT ![self] = Command]
235   ∧ UNCHANGED ⟨broadcaster, faulty_equivoc, sent_echo, sent_ready,
236                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
237
238\* Upon receiving INIT: broadcast ECHO(v)
239EchoOnInit(self) ≜
240   ∧ sent_echo[self] = NULL
241   ∧ delivered[self] = NULL
242   ∧ HasInit(self)
243   ∧ sent_echo' = [sent_echo EXCEPT ![self] = InitValue(self)]
244   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_ready,
245                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
246
247\* Upon receiving Q echoes for v: broadcast READY(v)
248ReadyOnEchos(self) ≜
249   ∧ sent_ready[self] = NULL
250   ∧ delivered[self] = NULL
251   ∧ ∃ v ∈ EchoQuorum(self, Q) :
252         sent_ready' = [sent_ready EXCEPT ![self] = v]
253   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo,
254                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
255
256\* Upon receiving Qa readies for v: broadcast READY(v)
257ReadyAmplify(self) ≜
258   ∧ sent_ready[self] = NULL
259   ∧ delivered[self] = NULL
260   ∧ ∃ v ∈ ReadyQuorum(self, Qa) :
261         sent_ready' = [sent_ready EXCEPT ![self] = v]
262   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo,
263                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt, delivered⟩
264
265\* Upon receiving Q readies for v: deliver v (and send READY if not yet sent)
266DeliverOnReady(self) ≜
267   ∧ delivered[self] = NULL
268   ∧ ∃ v ∈ ReadyQuorum(self, Q) :
269         ∧ delivered' = [delivered EXCEPT ![self] = v]
270         ∧ IF sent_ready[self] = NULL
271            THEN sent_ready' = [sent_ready EXCEPT ![self] = v]
272            ELSE UNCHANGED sent_ready
273   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo,
274                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt⟩
275
276\* Upon receiving Qo echoes for v: deliver v (fast path)
277OptimisticDeliver(self) ≜
278   ∧ delivered[self] = NULL
279   ∧ ∃ v ∈ EchoQuorum(self, Qo) :
280         ∧ delivered' = [delivered EXCEPT ![self] = v]
281         ∧ IF sent_ready[self] = NULL
282            THEN sent_ready' = [sent_ready EXCEPT ![self] = v]
283            ELSE UNCHANGED sent_ready
284   ∧ UNCHANGED ⟨broadcaster, sent_init, faulty_equivoc, sent_echo,
285                  rcvd_init_v, rcvd_echo_cnt, rcvd_ready_cnt⟩
286
287HonestStep(self) ≜
288   ∨ LeaderInit(self)
289   ∨ EchoOnInit(self)
290   ∨ ReadyOnEchos(self)
291   ∨ ReadyAmplify(self)
292   ∨ DeliverOnReady(self)
293   ∨ OptimisticDeliver(self)
294
295\* ============================================================================
296\* Specification
297\* ============================================================================
298Terminated ≜ ∀ p ∈ Honest : delivered[p] ≠ NULL
299
300Done ≜ Terminated ∧ UNCHANGED vars
301
302Next ≜
303   ∨ ∃ p ∈ Honest : HonestStep(p)
304   ∨ ∃ p ∈ Honest : Receive(p)
305   ∨ FaultyStep
306   ∨ Done
307
308\* Weak fairness for honest actions and message reception
309Fairness ≜
310   ∧ ∀ p ∈ Honest : WF_vars(HonestStep(p))
311   ∧ ∀ p ∈ Honest : WF_vars(Receive(p))
312
313Spec ≜ Init ∧ □[Next]_vars ∧ Fairness
314
315\* ============================================================================
316\* Safety Properties
317\* ============================================================================
318
319Agreement ≜
320   ∀ p, q ∈ Honest :
321      (delivered[p] ≠ NULL ∧ delivered[q] ≠ NULL) ⇒ delivered[p] = delivered[q]
322
323Validity ≜
324   broadcaster ∈ Honest ⇒
325      ∀ p ∈ Honest : delivered[p] ≠ NULL ⇒ delivered[p] = Command
326
327\* ============================================================================
328\* Liveness
329\* ============================================================================
330
331Termination ≜ ∀ p ∈ Honest : ◇(delivered[p] ≠ NULL)
332
333=============================================================================

Model check with n=4, f=1 (or n=7, f=2 if you have patience) and verify Agreement, Validity, and Termination.

0x3: From Broadcast to Multi-Value Agreement

The round-optimized Bracha handles the single-leader case. But what if everyone has a value to propose? This is multi-value agreement (MVA):

Every process starts with an input value
All honest processes deliver the same output
If a supermajority agrees on input $v$, output must be $v$
If inputs are split, output can be $\bot$ (explicit “no consensus”)

MVA is useful whenever you have a bunch of servers that need to agree on their own observations, extracting a supermajority opinion from conflicting proposals: leader election, view changes, detecting failures, etc.

The Challenge

Without a designated leader, equivocation isn’t the threat. Fragmentation is. If honest inputs split across multiple values, no single value might reach quorum. We need:

A way to detect when no value can win
A safe way to terminate with $\bot$ in that case
Guarantees that $\bot$ only happens when genuinely necessary

Additional Thresholds

Two more:

\[ \begin{aligned} Q_s &= \lfloor (n + f) / 2 \rfloor + 1 &&\text{(supermajority threshold)} \\ Q_e &= \lfloor n/2 \rfloor + 1 &&\text{(echo-backing threshold)} \end{aligned} \]

If $\geq Q_s$ honest processes have the same input, that value must be the output (“strong validity”).

The echo-backing threshold $Q_e$ prevents an adversary from exploiting message scheduling to make minority values win. More on this shortly.

0x4: The Multi-Value Protocol

The protocol extends round-optimized Bracha with:

ECHO phase: Each process echoes its own input (not a leader’s INIT)
READY phase: Same as before, but can also READY $\bot$ if echoes fragment
ABORT phase: New mechanism for when READYs themselves fragment

Helper definitions (where $E(v)$ and $R(v)$ denote counts of ECHOs and READYs received for value $v$):

$\text{PluralityAmongEchoes}$ $$\text{unique } \underbrace{\arg\max_v E(v)}_{\text{most echoes}} \text{, or } \bot$$

$\text{CanWin}(x)$ $$\underbrace{R(x)}_{\text{current}} + \underbrace{(n - \text{TotalReadies})}_{\text{outstanding}} \geq Q$$

$\text{CanReachQuorum}$ $$\underbrace{\max_v R(v)}_{\text{best}} + \underbrace{(n - \text{TotalReadies})}_{\text{outstanding}} \geq Q$$

$\text{CanReachEchoBacking}$ $$\underbrace{\max_v E(v)}_{\text{best}} + \underbrace{\max(0, n - \text{TotalEchos} - f)}_{\text{remaining honest}} \geq Q_e$$

// State variables (per process):
//   sentᵣ ∈ V ∪ {⊥, ∅}       - what READY was broadcast (∅ = none yet)
//   delivered ∈ V ∪ {⊥, ∅}   - delivered value (∅ = none yet)
//   sentₐ ∈ {true, false}    - whether ABORT was sent

upon start:
    send ⟨ECHO, input⟩ to all

upon E(v) ≥ Q ∧ sentᵣ = ∅:                              // Q echoes -> ready
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon TotalEchoes ≥ Q ∧ (∀v: E(v) < Q)                   // R2: timeout path
     ∧ sentᵣ = ∅ ∧ delivered = ∅:
    plurality ← PluralityAmongEchoes()                  // unique max, or ⊥ if tied
    hasBacking ← plurality ≠ ⊥ ∧ E(plurality) ≥ Qₑ
    if ¬hasBacking ∧ CanReachEchoBacking():
        wait                                            // more echoes may arrive
    else if hasBacking:
        send ⟨READY, plurality⟩ to all; sentᵣ ← plurality
    else:                                               // no backing possible, demote
        send ⟨READY, ⊥⟩ to all; sentᵣ ← ⊥

upon R(v) ≥ Qₐ ∧ sentᵣ = ∅:                             // R3: amplify value
    send ⟨READY, v⟩ to all; sentᵣ ← v

upon R(⊥) ≥ Qₐ ∧ sentᵣ = ∅:                             // R4: amplify ⊥
    send ⟨READY, ⊥⟩ to all; sentᵣ ← ⊥

Why ties must wait: When PluralityAmongEchoes() returns ⊥ (a tie), the protocol waits rather than immediately readying ⊥. Additional honest echoes may break the tie. Only when CanReachEchoBacking() becomes false (all honest echoes have arrived, no value can reach $Q_e$) does the protocol commit to ⊥.

upon E(v) ≥ Qₒ ∧ delivered = ∅                          // D1: fast path (2 rounds)
     ∧ sentᵣ ∈ {∅, v}:
    if sentᵣ = ∅: send ⟨READY, v⟩; sentᵣ ← v
    delivered ← v

upon R(v) ≥ Q ∧ delivered = ∅                           // D2: deliver on ready quorum
     ∧ (sentᵣ ∈ {∅, v} ∨ ¬CanWin(sentᵣ)):
    if sentᵣ = ∅: send ⟨READY, v⟩; sentᵣ ← v
    delivered ← v

upon R(⊥) ≥ Q ∧ delivered = ∅                           // D3: deliver on ready-⊥ quorum
     ∧ (sentᵣ ∈ {∅, ⊥} ∨ ¬CanWin(sentᵣ)):
    if sentᵣ = ∅: send ⟨READY, ⊥⟩; sentᵣ ← ⊥
    delivered ← ⊥

// Abort mechanism (READYs fragment irrecoverably)
upon sentᵣ ≠ ∅ ∧ TotalReadies ≥ Q                       // A1: initiate abort
     ∧ (∀v: R(v) < Q) ∧ R(⊥) < Q
     ∧ ¬CanReachQuorum():
    send ⟨ABORT⟩ to all; sentₐ ← true

upon Aborts ≥ Qₐ ∧ sentᵣ ≠ ∅                            // A2: amplify abort
     ∧ sentₐ = false:
    send ⟨ABORT⟩ to all; sentₐ ← true

upon Aborts ≥ Q ∧ sentᵣ ≠ ∅ ∧ delivered = ∅             // A3: deliver on abort
     ∧ TotalReadies ≥ Q ∧ (∀v: R(v) ≤ Q − 2f − 1):
    if sentₐ = false: send ⟨ABORT⟩; sentₐ ← true
    delivered ← ⊥

Abort triggers when a process has readied, received $Q$ total readies, but no value can reach $Q$. ABORTs propagate via amplification, and $Q$ ABORTs force delivery of $\bot$.

On A3’s guard: The ∀v: R(v) ≤ Q − 2f − 1 condition prevents aborting when a value could have achieved quorum elsewhere. If some value $v$ got $Q$ readies globally, at least $Q - f$ correct processes sent READY(v). A3 requires having heard from $Q$ senders, at least $Q - f$ correct. Pigeonhole: overlap $\geq (Q-f) + (Q-f) - (n-f) = Q - 2f$. So we’d observe $\geq Q - 2f$ readies for $v$ locally, blocking the abort.

Safety Properties

Agreement: Same intersection arguments, plus: if anyone delivers $v \in V$, they saw $Q_o$ ECHOs or $Q$ READYs for $v$. For D1, $\geq Q_e$ correct processes echoed $v$; for D2, $\geq Q_a$ correct processes readied $v$. Either prevents a conflicting value from reaching delivery threshold.

Strong Validity: If $\geq Q_s$ honest processes input $v$, then $v$ has a strict majority among all honest echoes. By Lemma 2 in the spec, any process receiving $Q$ echoes either sees $Q$ for $v$ directly, or $v$ is the majority. Either way, all READYs go to $v$, and $v$ is delivered.

Integrity: If someone delivers $\bot$, it required $Q$ READYs for $\bot$ or $Q$ ABORTs. Both require $\geq Q_a$ honest processes to have sent $\bot$/ABORT. Only happens when no value achieved supermajority.

Termination (partial synchrony): Every honest process eventually receives $Q$ total echoes (since $|Honest| \geq Q$). From there:

Some value reaches $Q_o$: optimistic delivery
Some value reaches $Q$: standard delivery
Echoes fragment: after timeout, demote to $\bot$ when CanReachEchoBacking() = false
READYs fragment: abort mechanism fires

Synchrony Model: Safety (Agreement, Validity, Integrity) holds under full asynchrony. Only demotion-to-⊥ requires partial synchrony (correct-to-correct messages arrive within Δ after GST). Consistent with FLP.

The Echo-Backing Fix

The $E(v) \geq Q_e$ guard on R2 wasn’t in the initial design. Model checking revealed a subtle attack that only surfaces in MVA (not single-leader broadcast). This echo-backing requirement applies only to R2 (plurality ready), not to R3 (amplification).

The Attack: Consider $n = 7, f = 2$ with thresholds $Q = 5$, $Q_o = 6$, $Q_e = 4$. Honest processes $h_1$–$h_4$ input $x$; honest $h_5$ inputs $y$. Byzantine processes send $\text{ECHO}(x)$ to $h_1$ and $\text{ECHO}(y)$ to everyone else.

The adversary schedules delivery so $h_2$ receives its first $Q = 5$ echoes as $\{B_1(y), B_2(y), h_5(y), h_1(x), h_3(x)\}$, giving $E(y) = 3, E(x) = 2$. Without echo-backing, $h_2$ would ready $y$ via R2 (plurality). Similarly for $h_3, h_4, h_5$.

Meanwhile, $h_1$ sees $Q_o = 6$ echoes for $x$ and delivers via D1. If $h_2$–$h_5$ ready $y$ and deliver via D2, Agreement is violated.

Why Echo-Backing Blocks This: The maximum echoes for $y$ at any correct process is:

$$ E(y) = \underbrace{1}_{h_5} + \underbrace{2}_{\text{Byzantine}} = 3 < 4 = Q_e $$

Since $$E(y) < Q_e$$ , R2’s guard fails. Process $$h_2$$ must wait. Eventually $$h_2(x)$$ and $$h_4(x)$$ arrive, yielding $E(x) = 4 \geq Q_e$ . Now $$x$$ is both the plurality and has echo-backing, so $$h_2$$ readies $$x$$ .

A value with $$Q_o$$ echoes at any process guarantees $\geq Q_e$ echoes at every correct process (since $$Q_o - f = Q_e$$ ). The echo-backing guard ensures we only ready values that could plausibly have fast-path support.

Liveness (partial synchrony required): What if plurality exists but can never reach echo-backing? This happens when all correct echoes have arrived but they’re fragmented. Demotion to $\bot$ requires both:

A local timeout has fired, AND
CanReachEchoBacking() = false

Under partial synchrony, after GST all correct-to-correct messages arrive within Δ. A timeout calibrated to ≥ Δ ensures all correct echoes arrive first. Post-timeout, HonestEchoSenders equals the count of correct processes, so CanReachEchoBacking() accurately reflects whether any value can still reach $Q_e$.

If any value had supermajority support ($\geq Q_s$ correct inputs), it would achieve $\geq Q_e$ echoes from correct processes alone, arriving before timeout.

Implementation: The timeout must fire only after all correct echoes arrive. In partial synchrony, use increasing timeouts (exponential backoff) until post-GST. Pre-GST, if a timeout fires early, don’t demote: re-check CanReachEchoBacking() (still true if correct echoes are missing). The TLA+ model makes timeout contingent on all correct echoes having been received.
Safety vs. Liveness: Safety (Agreement, Validity) holds under full asynchrony. Only demotion-to-$\bot$ liveness requires partial synchrony. Consistent with FLP.

The CanWin Fallback

The ¬CanWin(sentᵣ) fallback in D2/D3 prevents livelock. Without it, a process that sent READY for a minority value gets stuck forever when a different value achieves $Q$ readies. The primary guard sentᵣ ∈ {∅, v} fails, but the process can’t deliver. The fallback lets it give up when its value is mathematically eliminated.

The TLA+ Spec

rcast.tla (download)

  1-------------------- MODULE rcast --------------------
  2(*
  3 Rapidcast MVA: Byzantine Multi-Value Agreement with Optimistic Fast Path
  4 ========================================================================
  5 * Version 2. Simplified state representation, abort safety fixes.
  6 Can Bölük, April 3, 2025.
  7
  8 All processes propose values and agree on one output (or ⊥ when inputs
  9 are irreconcilably split). Delivers in 2 rounds when a supermajority
 10 shares the same input; falls back to 3-4 rounds otherwise.
 11
 12 Properties (n > 3f):
 13   - Agreement        No two honest processes deliver different values
 14   - Strong Validity  Supermajority input v: output v
 15   - Weak Validity    Output v ∈ V: some honest process input v
 16   - Integrity        Output ⊥: no supermajority existed
 17   - Termination      All honest processes eventually deliver
 18
 19 Synchrony: Safety holds under full asynchrony. Termination requires
 20 partial synchrony (bounded message delay after GST).
 21
 22 Fault Model: Byzantine processes may equivocate (send different values
 23 to different recipients). Modeled via per-recipient nondeterministic
 24 message content. Honest processes broadcast uniformly.
 25*)
 26
 27EXTENDS Naturals, FiniteSets, TLC
 28
 29\* ============================================================================
 30\* SYNCHRONY MODEL:
 31\* ============================================================================
 32\* Safety holds under full asynchrony. Termination needs partial synchrony:
 33\* ReadyOnTimeout's ⊥-demotion assumes all honest echoes arrive before
 34\* CanReachEchoBacking becomes false. Implementation: timeout > post-GST Δ.
 35\* Spec abstracts timing via fairness on honest-to-honest delivery.
 36\* ============================================================================
 37
 38\* ============================================================================
 39\* Protocol Parameters
 40\* ============================================================================
 41CONSTANTS
 42   Honest,         \* the set of correct processes
 43   Faulty,         \* the set of Byzantine processes, may be empty
 44   V               \* the set of valid values
 45
 46\* Sentinel values
 47NULL   ≜ "∅"    \* not yet set
 48Bottom ≜ "⊥"    \* no value (abort outcome)
 49VExt ≜ V ∪ {Bottom}
 50
 51\* ============================================================================
 52\* Definitions
 53\* ============================================================================
 54P ≜ Honest ∪ Faulty
 55N ≜ Cardinality(P)
 56F ≜ Cardinality(Faulty)
 57
 58\* Protocol thresholds
 59Q ≜ N - F                      \* quorum (2f+1 when n=3f+1)
 60Qo ≜ N ÷ 2 + F + 1          \* optimistic delivery
 61Qa ≜ F + 1                     \* amplification
 62Qs ≜ (N + F) ÷ 2 + 1        \* supermajority
 63Qe ≜ N ÷ 2 + 1              \* echo-backing (majority)
 64
 65ASSUME ∧ N > 3 * F
 66       ∧ V ≠ {}
 67       ∧ Honest ∩ Faulty = {}
 68       ∧ IsFiniteSet(Honest)
 69       ∧ IsFiniteSet(Faulty)
 70       ∧ IsFiniteSet(V)
 71       \* Disjointness: values, parties, sentinels
 72       ∧ V ∩ P = {}
 73       ∧ Bottom ∉ V ∧ NULL ∉ V
 74       ∧ Bottom ∉ P ∧ NULL ∉ P
 75
 76\* Symmetry: combine permutations across Honest, Faulty, V
 77CombinePerm(ph, pf, pv) ≜
 78   [x ∈ P ∪ V ↦ IF x ∈ Honest THEN ph[x]
 79                ELSE IF x ∈ Faulty THEN pf[x]
 80                ELSE pv[x]]
 81
 82Sym ≜ {CombinePerm(ph, pf, pv) :
 83         ph ∈ Permutations(Honest),
 84         pf ∈ Permutations(Faulty),
 85         pv ∈ Permutations(V)}
 86
 87\* ============================================================================
 88\* Protocol State Variables
 89\* ============================================================================
 90VARIABLES
 91   input,              \* [Honest -> V]: honest inputs
 92
 93   \* === Honest party broadcast state ===
 94   sent_echo,          \* [Honest -> V ∪ {NULL}]: value broadcast by honest party
 95   sent_ready,         \* [Honest -> VExt ∪ {NULL}]: value broadcast by honest party
 96   sent_abort,         \* [Honest -> BOOLEAN]: whether honest party sent abort
 97
 98   \* === Per-sender receive tracking ===
 99   rcvd_echo,          \* [Honest -> SUBSET (P × V)]: received echoes (only non-NULL)
100   rcvd_ready,         \* [Honest -> SUBSET (P × VExt)]: received readies (only non-NULL)
101   rcvd_abort,         \* [Honest -> SUBSET P]: senders of ABORT
102
103   delivered           \* [Honest -> VExt ∪ {NULL}]: delivered value
104
105send_vars ≜ ⟨sent_echo, sent_ready, sent_abort⟩
106recv_vars ≜ ⟨rcvd_echo, rcvd_ready, rcvd_abort⟩
107vars ≜ ⟨input, sent_echo, sent_ready, sent_abort,
108          rcvd_echo, rcvd_ready, rcvd_abort, delivered⟩
109
110\* ============================================================================
111\* Helper Operators
112\* ============================================================================
113Max(a, b) ≜ IF a ≥ b THEN a ELSE b
114SetMax(S) ≜ IF S = {} THEN 0 ELSE CHOOSE x ∈ S : ∀ y ∈ S : x ≥ y
115
116\* Get echo value from sender s at process p (NULL if not received)
117GetEcho(p, s) ≜ IF ∃ v ∈ V : ⟨s, v⟩ ∈ rcvd_echo[p]
118                THEN CHOOSE v ∈ V : ⟨s, v⟩ ∈ rcvd_echo[p]
119                ELSE NULL
120
121\* Get ready value from sender s at process p (NULL if not received)
122GetReady(p, s) ≜ IF ∃ w ∈ VExt : ⟨s, w⟩ ∈ rcvd_ready[p]
123                  THEN CHOOSE w ∈ VExt : ⟨s, w⟩ ∈ rcvd_ready[p]
124                  ELSE NULL
125
126\* Who has sent us an echo?
127EchoSenders(p) ≜ {s ∈ P : ∃ v ∈ V : ⟨s, v⟩ ∈ rcvd_echo[p]}
128
129\* Who has sent us a ready?
130ReadySenders(p) ≜ {s ∈ P : ∃ w ∈ VExt : ⟨s, w⟩ ∈ rcvd_ready[p]}
131
132\* Counts derived from set cardinalities
133EchoCount(p, v) ≜ Cardinality({s ∈ P : ⟨s, v⟩ ∈ rcvd_echo[p]})
134ReadyCount(p, w) ≜ Cardinality({s ∈ P : ⟨s, w⟩ ∈ rcvd_ready[p]})
135AbortCount(p) ≜ Cardinality(rcvd_abort[p])
136TotalEchos(p) ≜ Cardinality(EchoSenders(p))
137TotalReadys(p) ≜ Cardinality(ReadySenders(p))
138MaxEchoCount(p) ≜ SetMax({EchoCount(p, v) : v ∈ V})
139MaxReadyCount(p) ≜ SetMax({ReadyCount(p, v) : v ∈ V})
140
141\* ============================================================================
142\* Threshold Predicates
143\* ============================================================================
144\* [RCAST-ECHO-QUORUM]
145EchoQuorum(p, t) ≜ {v ∈ V : EchoCount(p, v) ≥ t}
146
147\* [RCAST-READY-QUORUM]
148ReadyQuorum(p, t) ≜ {v ∈ V : ReadyCount(p, v) ≥ t}
149
150\* [RCAST-BOT-QUORUM]
151HasReadyBottomQuorum(p, t) ≜ ReadyCount(p, Bottom) ≥ t
152
153\* [RCAST-PLURALITY]
154\* Unique max or ⊥ if tied
155PluralityAmongReceived(p) ≜
156   LET maxCnt ≜ MaxEchoCount(p)
157       winners ≜ {v ∈ V : EchoCount(p, v) = maxCnt}
158   IN IF Cardinality(winners) = 1 ∧ maxCnt > 0
159      THEN CHOOSE v ∈ winners : TRUE
160      ELSE Bottom
161
162\* [RCAST-CAN-REACH-QUORUM]
163\* Can any value still reach quorum?
164CanReachQuorum(p) ≜
165   LET remaining ≜ N - TotalReadys(p)
166   IN MaxReadyCount(p) + remaining ≥ Q
167
168\* [RCAST-CAN-WIN]
169\* Can w still hit quorum? (TRUE if w = NULL since question is N/A)
170CanWin(p, w) ≜
171   IF w = NULL THEN TRUE
172   ELSE LET remaining ≜ N - TotalReadys(p)
173        IN ReadyCount(p, w) + remaining ≥ Q
174
175\* [RCAST-ECHO-BACKING]
176HasEchoBacking(p, v) ≜ EchoCount(p, v) ≥ Qe
177
178\* [RCAST-CAN-REACH-ECHO-BACKING]
179\* Discount up to f missing senders (Byzantine may omit forever)
180HonestEchoSenders(p) ≜ Cardinality({h ∈ Honest : ∃ v ∈ V : ⟨h, v⟩ ∈ rcvd_echo[p]})
181
182CanReachEchoBacking(p) ≜
183   LET honestRemaining ≜ Cardinality(Honest) - HonestEchoSenders(p)
184   IN MaxEchoCount(p) + honestRemaining ≥ Qe
185
186\* ============================================================================
187\* Byzantine Nondeterminism Reduction
188\* ============================================================================
189(*
190 Limit Byzantine to "interesting" values that could affect outcome.
191 Sound because unknown values can't reach thresholds (honest won't echo/ready).
192 *)
193
194\* Values that are "in play" at process p
195InterestingEchoValues(p) ≜
196   {input[h] : h ∈ Honest}                              \* Honest inputs
197   ∪ {v ∈ V : EchoCount(p, v) > 0}                 \* Already seen echoes
198
199InterestingReadyValues(p) ≜
200   {input[h] : h ∈ Honest}                              \* Honest inputs
201   ∪ {v ∈ V : EchoCount(p, v) > 0}                 \* Echoed values
202   ∪ {v ∈ V : ReadyCount(p, v) > 0}                \* Already seen readies
203
204\* ============================================================================
205\* Type Invariant
206\* ============================================================================
207TypeOK ≜
208   ∧ input ∈ [Honest → V]
209   \* Honest broadcast state
210   ∧ sent_echo ∈ [Honest → V ∪ {NULL}]
211   ∧ sent_ready ∈ [Honest → VExt ∪ {NULL}]
212   ∧ sent_abort ∈ [Honest → BOOLEAN]
213   \* Per-sender receive tracking
214   ∧ rcvd_echo ∈ [Honest → SUBSET (P × V)]
215   ∧ rcvd_ready ∈ [Honest → SUBSET (P × VExt)]
216   ∧ rcvd_abort ∈ [Honest → SUBSET P]
217   ∧ delivered ∈ [Honest → VExt ∪ {NULL}]
218
219\* ============================================================================
220\* Protocol Initialization
221\* ============================================================================
222Init ≜
223   ∧ input ∈ [Honest → V]
224   \* Honest broadcast state
225   ∧ sent_echo = [h ∈ Honest ↦ NULL]
226   ∧ sent_ready = [h ∈ Honest ↦ NULL]
227   ∧ sent_abort = [h ∈ Honest ↦ FALSE]
228   \* Per-sender receive tracking
229   ∧ rcvd_echo = [p ∈ Honest ↦ {}]
230   ∧ rcvd_ready = [p ∈ Honest ↦ {}]
231   ∧ rcvd_abort = [p ∈ Honest ↦ {}]
232   ∧ delivered = [p ∈ Honest ↦ NULL]
233
234\* ============================================================================
235\* Message Reception
236\* ============================================================================
237(*
238 Byzantine equivocation: faulty senders send different values to different
239 recipients. Modeled via nondeterministic receive from faulty, constrained
240 by at-most-once per (src, dst). Honest senders broadcast uniformly.
241 *)
242
243\* Receive ECHO from an honest sender (must match what they broadcast)
244ReceiveEchoFromHonest(p, h) ≜
245   ∧ delivered[p] = NULL
246   ∧ h ∈ Honest
247   ∧ ¬∃ v ∈ V : ⟨h, v⟩ ∈ rcvd_echo[p]
248   ∧ sent_echo[h] ≠ NULL
249   ∧ rcvd_echo' = [rcvd_echo EXCEPT ![p] = @ ∪ {⟨h, sent_echo[h]⟩}]
250   ∧ UNCHANGED ⟨input, send_vars, rcvd_ready, rcvd_abort, delivered⟩
251
252\* Receive ECHO from a faulty sender (limited to interesting values)
253ReceiveEchoFromFaulty(p, f) ≜
254   ∧ delivered[p] = NULL
255   ∧ f ∈ Faulty
256   ∧ ¬∃ v ∈ V : ⟨f, v⟩ ∈ rcvd_echo[p]
257   ∧ ∃ v ∈ InterestingEchoValues(p) :
258         rcvd_echo' = [rcvd_echo EXCEPT ![p] = @ ∪ {⟨f, v⟩}]
259   ∧ UNCHANGED ⟨input, send_vars, rcvd_ready, rcvd_abort, delivered⟩
260
261ReceiveEcho(p) ≜
262   ∨ ∃ h ∈ Honest : ReceiveEchoFromHonest(p, h)
263   ∨ ∃ f ∈ Faulty : ReceiveEchoFromFaulty(p, f)
264
265\* Receive READY from an honest sender (value or ⊥)
266ReceiveReadyFromHonest(p, h) ≜
267   ∧ delivered[p] = NULL
268   ∧ h ∈ Honest
269   ∧ ¬∃ w ∈ VExt : ⟨h, w⟩ ∈ rcvd_ready[p]
270   ∧ sent_ready[h] ≠ NULL
271   ∧ rcvd_ready' = [rcvd_ready EXCEPT ![p] = @ ∪ {⟨h, sent_ready[h]⟩}]
272   ∧ UNCHANGED ⟨input, send_vars, rcvd_echo, rcvd_abort, delivered⟩
273
274\* Receive READY(v) from a faulty sender (limited to interesting values)
275ReceiveReadyValueFromFaulty(p, f) ≜
276   ∧ delivered[p] = NULL
277   ∧ f ∈ Faulty
278   ∧ ¬∃ w ∈ VExt : ⟨f, w⟩ ∈ rcvd_ready[p]
279   ∧ ∃ v ∈ InterestingReadyValues(p) :
280         rcvd_ready' = [rcvd_ready EXCEPT ![p] = @ ∪ {⟨f, v⟩}]
281   ∧ UNCHANGED ⟨input, send_vars, rcvd_echo, rcvd_abort, delivered⟩
282
283\* Receive READY(⊥) from a faulty sender
284ReceiveReadyBottomFromFaulty(p, f) ≜
285   ∧ delivered[p] = NULL
286   ∧ f ∈ Faulty
287   ∧ ¬∃ w ∈ VExt : ⟨f, w⟩ ∈ rcvd_ready[p]
288   ∧ rcvd_ready' = [rcvd_ready EXCEPT ![p] = @ ∪ {⟨f, Bottom⟩}]
289   ∧ UNCHANGED ⟨input, send_vars, rcvd_echo, rcvd_abort, delivered⟩
290
291ReceiveReady(p) ≜
292   ∨ ∃ h ∈ Honest : ReceiveReadyFromHonest(p, h)
293   ∨ ∃ f ∈ Faulty : ReceiveReadyValueFromFaulty(p, f)
294   ∨ ∃ f ∈ Faulty : ReceiveReadyBottomFromFaulty(p, f)
295
296\* Receive ABORT from an honest sender
297ReceiveAbortFromHonest(p, h) ≜
298   ∧ delivered[p] = NULL
299   ∧ h ∈ Honest
300   ∧ h ∉ rcvd_abort[p]
301   ∧ sent_abort[h] = TRUE
302   ∧ rcvd_abort' = [rcvd_abort EXCEPT ![p] = @ ∪ {h}]
303   ∧ UNCHANGED ⟨input, send_vars, rcvd_echo, rcvd_ready, delivered⟩
304
305\* Receive ABORT from a faulty sender (at any time)
306ReceiveAbortFromFaulty(p, f) ≜
307   ∧ delivered[p] = NULL
308   ∧ f ∈ Faulty
309   ∧ f ∉ rcvd_abort[p]
310   ∧ rcvd_abort' = [rcvd_abort EXCEPT ![p] = @ ∪ {f}]
311   ∧ UNCHANGED ⟨input, send_vars, rcvd_echo, rcvd_ready, delivered⟩
312
313ReceiveAbort(p) ≜
314   ∨ ∃ h ∈ Honest : ReceiveAbortFromHonest(p, h)
315   ∨ ∃ f ∈ Faulty : ReceiveAbortFromFaulty(p, f)
316
317Receive(p) ≜
318   ∨ ReceiveEcho(p)
319   ∨ ReceiveReady(p)
320   ∨ ReceiveAbort(p)
321
322\* ============================================================================
323\* Honest Party Actions
324\* ============================================================================
325
326\* E1: [RCAST-SEND-ECHO]
327\* Upon start: broadcast ECHO(input)
328SendEcho(self) ≜
329   ∧ sent_echo[self] = NULL
330   ∧ delivered[self] = NULL
331   ∧ LET v ≜ input[self]
332      IN sent_echo' = [sent_echo EXCEPT ![self] = v]
333   ∧ UNCHANGED ⟨input, sent_ready, sent_abort, recv_vars, delivered⟩
334
335\* R1: [RCAST-READY-ON-ECHO-QUORUM]
336\* Upon receiving Q echoes for value v: broadcast READY(v)
337ReadyOnEchoQuorum(self) ≜
338   ∧ sent_ready[self] = NULL
339   ∧ delivered[self] = NULL
340   ∧ ∃ v ∈ EchoQuorum(self, Q) :
341         sent_ready' = [sent_ready EXCEPT ![self] = v]
342   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars, delivered⟩
343
344\* R2: [RCAST-READY-ON-TIMEOUT]
345\* Upon timeout with Q total echoes but no quorum: broadcast READY(plurality) or READY(⊥)
346\* Only proceed if: (1) plurality has echo-backing, OR (2) can't reach echo-backing (waiting won't help)
347\* This ensures we wait on ties when more echoes could break them.
348ReadyOnTimeout(self) ≜
349   ∧ sent_ready[self] = NULL
350   ∧ delivered[self] = NULL
351   ∧ TotalEchos(self) ≥ Q
352   ∧ EchoQuorum(self, Q) = {}
353   ∧ LET plurality ≜ PluralityAmongReceived(self)
354      IN ∧ (plurality ≠ Bottom ∧ HasEchoBacking(self, plurality)) ∨ ¬CanReachEchoBacking(self)
355         ∧ sent_ready' = [sent_ready EXCEPT ![self] =
356              IF plurality ≠ Bottom ∧ HasEchoBacking(self, plurality)
357              THEN plurality
358              ELSE Bottom]
359   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars, delivered⟩
360
361\* R3: [RCAST-READY-AMPLIFY-VALUE]
362\* Bracha amplification: f+1 READYs force the network.
363\* No echo-backing gate here - that would break totality under equivocation.
364\* Echo-backing is appropriate for originating READYs (R2), not amplification.
365ReadyAmplifyValue(self) ≜
366   ∧ sent_ready[self] = NULL
367   ∧ delivered[self] = NULL
368   ∧ ∃ v ∈ ReadyQuorum(self, Qa) :
369         sent_ready' = [sent_ready EXCEPT ![self] = v]
370   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars, delivered⟩
371
372\* R4: [RCAST-READY-AMPLIFY-BOT]
373\* Upon receiving Qa READY(⊥): broadcast READY(⊥)
374ReadyAmplifyBottom(self) ≜
375   ∧ sent_ready[self] = NULL
376   ∧ delivered[self] = NULL
377   ∧ HasReadyBottomQuorum(self, Qa)
378   ∧ sent_ready' = [sent_ready EXCEPT ![self] = Bottom]
379   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars, delivered⟩
380
381\* D1: [RCAST-OPTIMISTIC-DELIVER]
382\* Upon receiving Qo echoes for v: deliver v (fast path)
383OptimisticDeliver(self) ≜
384   ∧ delivered[self] = NULL
385   ∧ ∃ v ∈ EchoQuorum(self, Qo) :
386         ∧ sent_ready[self] ∈ {NULL, v}
387         ∧ delivered' = [delivered EXCEPT ![self] = v]
388         ∧ IF sent_ready[self] = NULL
389            THEN sent_ready' = [sent_ready EXCEPT ![self] = v]
390            ELSE UNCHANGED sent_ready
391   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars⟩
392
393\* D2: [RCAST-DELIVER-ON-READY-VALUE]
394\* Upon receiving Q READY(v): deliver v
395DeliverOnReadyValue(self) ≜
396   ∧ delivered[self] = NULL
397   ∧ ∃ v ∈ ReadyQuorum(self, Q) :
398         \* Primary guard: readied in {⊥, v}. Fallback: readied value can't win.
399         ∧ ∨ sent_ready[self] ∈ {NULL, v}
400           ∨ ¬CanWin(self, sent_ready[self])
401         ∧ delivered' = [delivered EXCEPT ![self] = v]
402         ∧ IF sent_ready[self] = NULL
403            THEN sent_ready' = [sent_ready EXCEPT ![self] = v]
404            ELSE UNCHANGED sent_ready
405   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars⟩
406
407\* D3: [RCAST-DELIVER-ON-READY-BOT]
408\* Upon receiving Q READY(⊥): deliver ⊥
409DeliverOnReadyBottom(self) ≜
410   ∧ delivered[self] = NULL
411   ∧ HasReadyBottomQuorum(self, Q)
412   \* Primary guard: readied in {⊥, ⊥}. Fallback: readied value can't win.
413   ∧ ∨ sent_ready[self] ∈ {NULL, Bottom}
414     ∨ ¬CanWin(self, sent_ready[self])
415   ∧ delivered' = [delivered EXCEPT ![self] = Bottom]
416   ∧ IF sent_ready[self] = NULL
417      THEN sent_ready' = [sent_ready EXCEPT ![self] = Bottom]
418      ELSE UNCHANGED sent_ready
419   ∧ UNCHANGED ⟨input, sent_echo, sent_abort, recv_vars⟩
420
421\* A1: [RCAST-SEND-ABORT]
422\* Upon detecting no value can reach quorum: broadcast ABORT
423SendAbort(self) ≜
424   ∧ sent_abort[self] = FALSE
425   ∧ delivered[self] = NULL
426   ∧ sent_ready[self] ≠ NULL
427   ∧ TotalReadys(self) ≥ Q
428   ∧ ReadyQuorum(self, Q) = {}
429   ∧ ¬HasReadyBottomQuorum(self, Q)
430   ∧ ¬CanReachQuorum(self)
431   ∧ sent_abort' = [sent_abort EXCEPT ![self] = TRUE]
432   ∧ UNCHANGED ⟨input, sent_echo, sent_ready, recv_vars, delivered⟩
433
434\* A2: [RCAST-ABORT-AMPLIFY]
435\* Upon receiving Qa ABORTs: broadcast ABORT
436AbortAmplify(self) ≜
437   ∧ sent_abort[self] = FALSE
438   ∧ delivered[self] = NULL
439   ∧ sent_ready[self] ≠ NULL
440   ∧ AbortCount(self) ≥ Qa
441   ∧ sent_abort' = [sent_abort EXCEPT ![self] = TRUE]
442   ∧ UNCHANGED ⟨input, sent_echo, sent_ready, recv_vars, delivered⟩
443
444\* A3: [RCAST-DELIVER-ON-ABORT]
445\* Upon receiving Q ABORTs: deliver ⊥
446DeliverOnAbort(self) ≜
447   ∧ delivered[self] = NULL
448   ∧ sent_ready[self] ≠ NULL
449   ∧ AbortCount(self) ≥ Q
450   \* Coverage guard: must hear from enough distinct parties before deciding.
451   \* Without this, NoValueCouldHaveWon passes trivially when honest readies in flight.
452   ∧ TotalReadys(self) ≥ Q
453   \* [RCAST-ABORT-SAFETY-GUARD]
454   \* Block ⊥ delivery if any value might have reached quorum elsewhere.
455   \* If v got Q readies globally, at least Q-F honest sent READY(v).
456   \* Having heard from Q processes (>=Q-F honest), by pigeonhole:
457   \*   overlap >= (Q-F) + (Q-F) - (N-F) = Q - 2F
458   \* So we'd see at least Q-2F readies for v locally.
459   ∧ ReadyQuorum(self, Q - 2*F) = {}
460   ∧ delivered' = [delivered EXCEPT ![self] = Bottom]
461   ∧ IF sent_abort[self] = FALSE
462      THEN sent_abort' = [sent_abort EXCEPT ![self] = TRUE]
463      ELSE UNCHANGED sent_abort
464   \* Note: sent_ready[self] /= NULL is a precondition, so no ready-if-not-sent logic needed
465   ∧ UNCHANGED ⟨input, sent_echo, sent_ready, recv_vars⟩
466
467HonestStep(self) ≜
468   ∨ SendEcho(self)
469   ∨ ReadyOnEchoQuorum(self)
470   ∨ ReadyOnTimeout(self)
471   ∨ ReadyAmplifyValue(self)
472   ∨ ReadyAmplifyBottom(self)
473   ∨ OptimisticDeliver(self)
474   ∨ DeliverOnReadyValue(self)
475   ∨ DeliverOnReadyBottom(self)
476   ∨ SendAbort(self)
477   ∨ AbortAmplify(self)
478   ∨ DeliverOnAbort(self)
479
480\* ============================================================================
481\* Specification
482\* ============================================================================
483Terminated ≜ ∀ p ∈ Honest : delivered[p] ≠ NULL
484
485Done ≜ Terminated ∧ UNCHANGED vars
486
487Next ≜
488   ∨ ∃ p ∈ Honest : HonestStep(p)
489   ∨ ∃ p ∈ Honest : Receive(p)
490   \* Faulty actions via nondeterminism in ReceiveXxxFromFaulty
491   ∨ Done
492
493\* Honest processes take enabled actions; honest-to-honest channels reliable.
494\* NO fairness for Byzantine receives - adversary can omit arbitrarily.
495Fairness ≜
496   ∧ ∀ p ∈ Honest : WF_vars(HonestStep(p))
497   ∧ ∀ p ∈ Honest : ∀ h ∈ Honest : WF_vars(ReceiveEchoFromHonest(p, h))
498   ∧ ∀ p ∈ Honest : ∀ h ∈ Honest : WF_vars(ReceiveReadyFromHonest(p, h))
499   ∧ ∀ p ∈ Honest : ∀ h ∈ Honest : WF_vars(ReceiveAbortFromHonest(p, h))
500
501Spec ≜ Init ∧ □[Next]_vars ∧ Fairness
502
503\* ============================================================================
504\* Safety Properties
505\* ============================================================================
506
507\* [RCAST-INV-AGREEMENT]
508Agreement ≜
509   ∀ p, q ∈ Honest :
510      (delivered[p] ≠ NULL ∧ delivered[q] ≠ NULL) ⇒ delivered[p] = delivered[q]
511
512HonestInputCount(v) ≜ Cardinality({p ∈ Honest : input[p] = v})
513H ≜ Cardinality(Honest)
514
515HasSupermajority(v) ≜ HonestInputCount(v) ≥ Qs
516
517SupermajorityValue ≜
518   IF ∃ v ∈ V : HasSupermajority(v)
519   THEN CHOOSE v ∈ V : HasSupermajority(v)
520   ELSE Bottom
521
522SimpleMajorityThreshold ≜ H ÷ 2 + 1
523HasSimpleMajority(v) ≜ HonestInputCount(v) ≥ SimpleMajorityThreshold
524
525SimpleMajorityValue ≜
526   IF ∃ v ∈ V : HasSimpleMajority(v)
527   THEN CHOOSE v ∈ V : HasSimpleMajority(v)
528   ELSE Bottom
529
530\* [RCAST-INV-STRONG-VALIDITY]
531StrongValidity ≜
532   LET sm ≜ SupermajorityValue
533   IN sm ≠ Bottom ⇒
534      ∀ p ∈ Honest : delivered[p] ≠ NULL ⇒ delivered[p] = sm
535
536\* [RCAST-INV-WEAK-VALIDITY]
537WeakValidity ≜
538   ∀ p ∈ Honest :
539      delivered[p] ∈ V ⇒ HonestInputCount(delivered[p]) > 0
540
541\* [RCAST-INV-INTEGRITY]
542Integrity ≜
543   ∀ p ∈ Honest :
544      delivered[p] = Bottom ⇒ SupermajorityValue = Bottom
545
546Validity ≜ StrongValidity
547
548\* ============================================================================
549\* Liveness
550\* ============================================================================
551
552\* [RCAST-TERMINATION]
553Termination ≜ ∀ p ∈ Honest : ◇(delivered[p] ≠ NULL)
554
555=============================================================================

Note on CanReachEchoBacking: Only used for R2’s plurality demotion. The formula conservatively assumes all outstanding echoes could go to the leading value, minus f Byzantine who may not send. Post-timeout (when all honest echoes have arrived), this becomes exact. R3 amplification doesn’t require echo-backing.
The implementation uses (n - TotalEchoes) - f to approximate remaining honest senders. The TLA+ spec uses the exact Cardinality(Honest) - HonestEchoSenders(p). These are equivalent post-timeout but differ during execution.

0x5: Putting It Together

Property	Bracha	Round-Optimized	MVA
Best case	3 rounds	2 rounds	2 rounds
Worst case	3 rounds	3 rounds	4 rounds
Messages	$O(n^2)$	$O(n^2)$	$O(n^2)$
Fault tolerance	$n > 3f$	$n > 3f$	$n > 3f$
Input model	Single leader	Single leader	All propose

Bigger quorums give stronger intersection properties, which lets us skip rounds when conditions are good. The cost is a slightly higher threshold, but when the network is healthy and honest parties dominate, hitting $Q_o$ vs $Q$ is a matter of one or two more messages, not an extra round.

0x6: Wrapping Up

So there you have it: Byzantine reliable broadcast in 2 rounds instead of 3, using the counterintuitive approach of a larger quorum for the fast path. The bigger quorum gives us stronger intersection properties, enough honest parties in the overlap to eliminate the voting round when conditions are good.

A nice reminder that even “solved” problems from 1987 can hide optimizations. Now to find what other decades-old algorithms are hiding in plain sight…
